Model No.

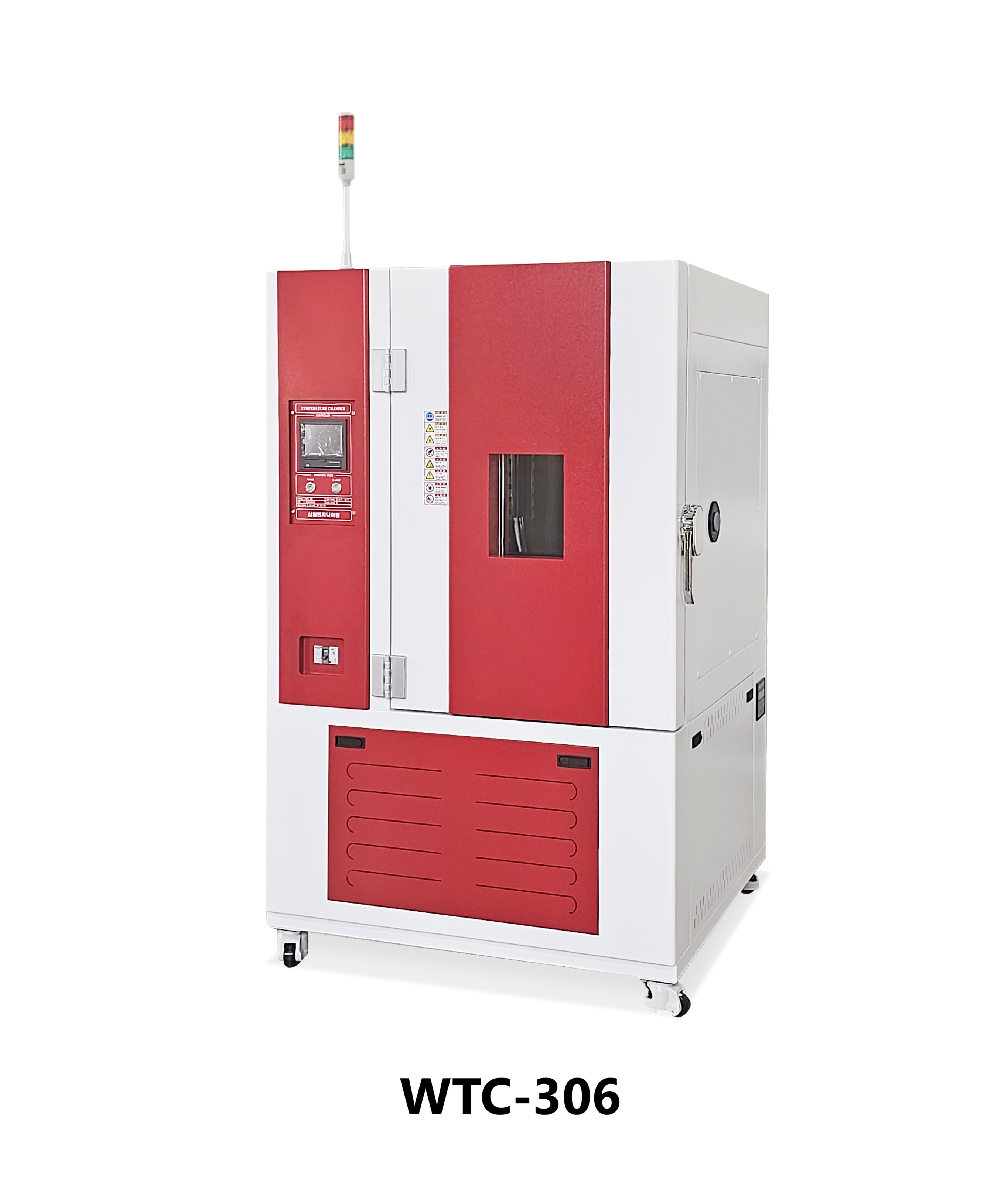

WTC-306

WTC-384

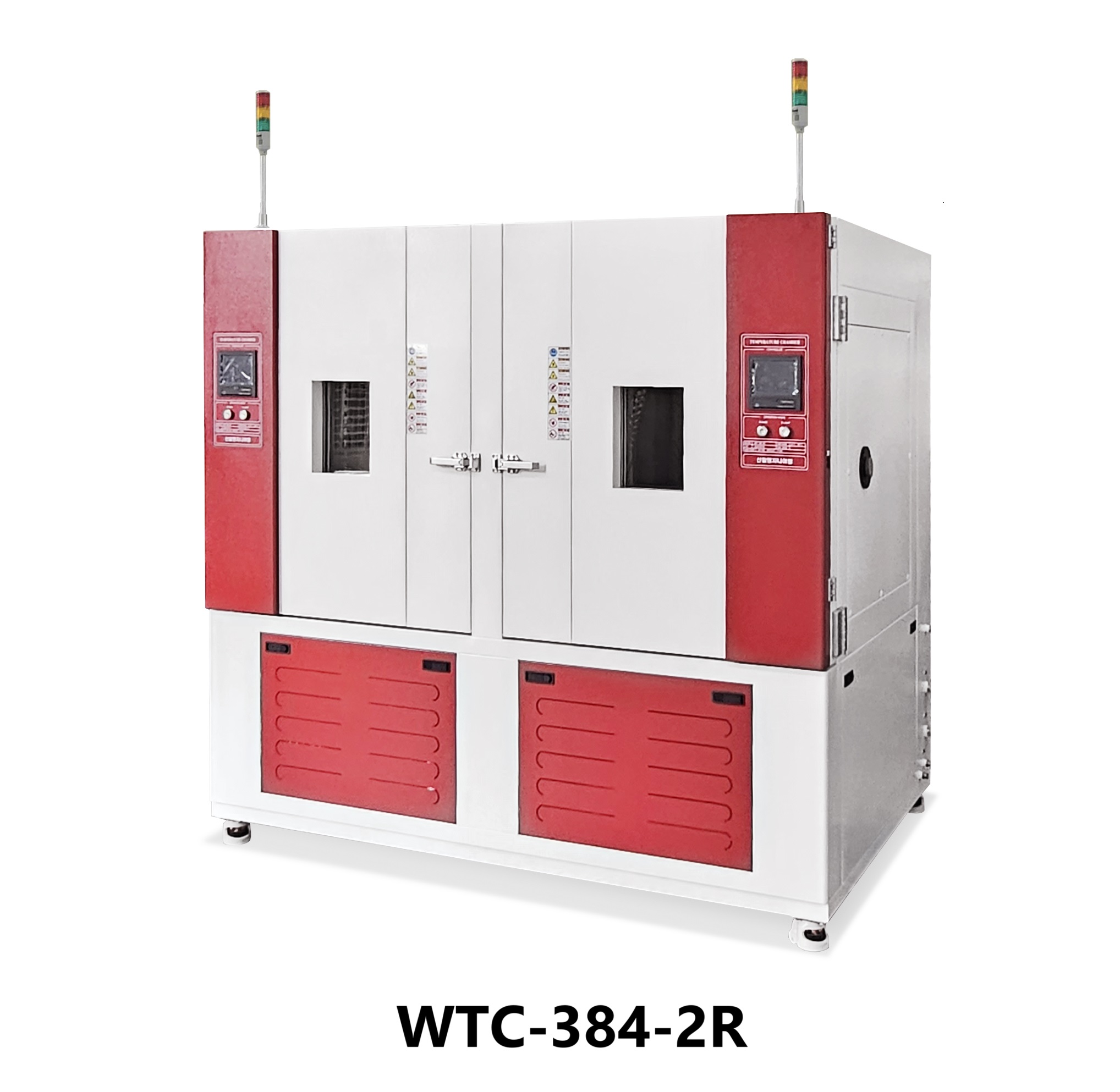

WTC-384-2R

Type

1 Room

2 Room

Dimensions w*d*h/mm (In)

600 * 600 * 850

800 * 600 * 800

 800 * 600 * 800 x 2 Chamber

Temp. controller

5.7” Touch screen programmable controller : 120 Patterns 1200 Segments, 999 cycle, SD 4 GB Memory, TEMP2500

*Temp. Range

-40℃ ∼ 150℃ (Option : -70℃ ∼ 180℃)

*Temp. change rate

Heating up & Cooling down : 1 K/min, Linearity (Option : 3 / 5 / 7 / 10 / 15 K/min, Linearity)

*Temporal fluctuation

≤±0.5℃ ∼ ≤±1.5℃

*Spatial variation

≤±1.5℃ ∼ ≤±3.0℃

Refrigeration system

Double sourced refrigeration system, water cooled type

Material (In)

18-8 Cr-Ni stainless steel plate (SUS304, 2B)

(Out)

 Steel plate (SCP-1) with powder coating finished (Option : SUS304 H/L)

Door

Silicone packing door with observation window (3 Fold vacuum glass - Hotwire attached, LED Lamp)

Utility

Access port Ø50mm (Available Ø100mm, Ø150mm),

Safety device

Over temp. protector, Motor overload relay (EOCR), Electronic over current relay, Refrigerator overload relay,

 Refrigerator High/Low pressure switch, Leakage breaker S/W, etc.

Power source

AC 380 VAC, 3 Phase, 50/60 Hz

Optional Accessories

Temp. controller

Touch screen controller (TEMP2700, NEX1000, TD510), Embedded HMI Controller (FCS, Facility Control System)

Facility

Door inter lock device, Low GWP refrigerants

Recorder

Chart type 2 channel (SR-10006) / Paperless type (SDR100, FX-1000, GR200)

MAS (Mobile alert system)

SNS, Voice call, Message : Ethernet network (RN171), WIFI (RN172)

*  Accordance with IEC60068-3-5 & IEC60068-2-14                                                               Technical details and dimensions are subject to change without prior notice for quality improvement
