Model No.

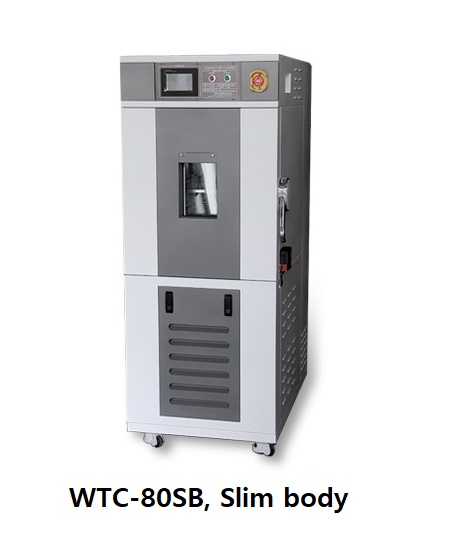

WTC-80SB

WTC-150SB

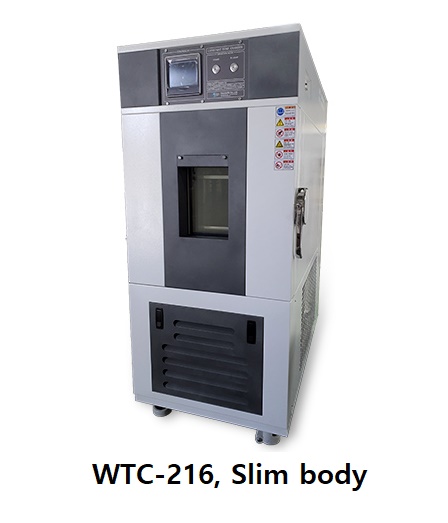

WTC-216SB

Type

Slim body

Dimensions w*d*h/mm (In)

400 * 400 * 500

 500 * 500 * 600

600 * 600 * 600

w*d*h/mm (Out)

600 * 1010 * 1625

700 * 1110 * 1710

800 * 1210 * 1710

Temp. controller

5” Touch screen programmable controller : 120 Patterns 1200 Segments, 999 cycle, SD 4 GB Memory, TEMP1300

*Range (Temp./Humidity)

-20℃ ∼ 150℃ (Option : -40℃ ∼ 150℃)

*Temp. change rate

Heating up & Cooling down : 1.0 K/min, Non-Linearity

*Temporal fluctuation

≤±0.5℃ ∼ ≤±1.5℃

*Spatial variation

≤±1.5℃ ∼ ≤±2.5℃

Refrigeration system

Air cooled type

Material (In) / (Out)

18-8 Cr-Ni stainless steel plate (STS304, 2B) / Steel plate (SCP-1) with powder coating finished

Door

Observation window (3 Fold vacuum glass - Hotwire attached, LED Lamp)

Sealing gasket

Seamless forming silicone packing

Utility

Access port Ø50mm (Available Ø100mm)

Safety device

Over temp. protector, Motor overload relay (EOCR), Electronic over current relay, Refrigerator overload relay,

 Refrigerator High/Low pressure switch, Leakage breaker S/W, etc.

Power source

AC 220 V or AC 380 V, 1 Phase or 3 Phase, 50/60 Hz

Optional Accessories

Facility

Door interlock device

Recorder

Chart type 2 channel (SR-10006) / Paperless type (SDR100, FX-1000, GR200)

MAS (Mobile alert system)

SNS, Voice call, Message : Ethernet network (RN171), WIFI (RN172), RN400 Series & RADIONODE365 Web, UA1X & Tapaculo for Android

*Accordance with IEC60068-3-5
